curve

Curve is the solution for an electric decorative pole in a continuous curve window. The coated track sits discretely behind the curving fascia pole, with track, fascia pole and components coated in matching or complementary colours.

Leading Motor options

Curve may be specified with your choice from the leading motorised systems. This provides power and control options ranging from standalone battery powered systems to fully integrated home automation solutions.

Concealed Track

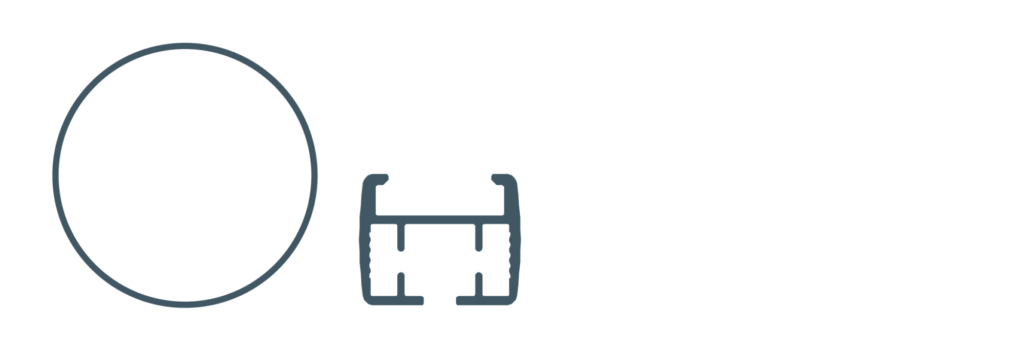

The electric track is suspended just behind the fascia pole, giving the impression of a unified electric pole.

Curves

The solution for curving bay windows, with both track and fascia pole precisely shaped to work harmoniously together.

fit

To ensure the perfect fit. Adjustable brackets with magnetic cover plates are supplied as standard.

Modern headings

The choice of motor systems means that modern headings can be accommodated, with both Wave® and Ripplefold® styles available.

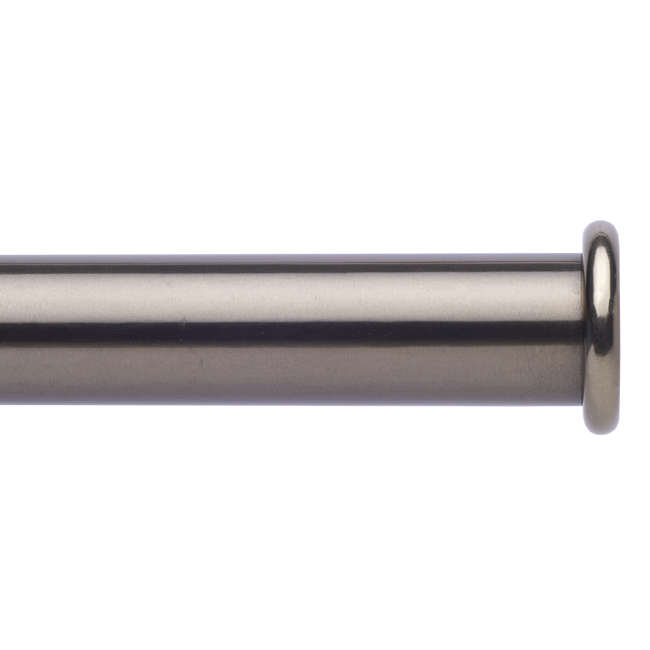

Finials

Curve is compatible with 50mm finials across our portfolio.

options

Finishes
Finials

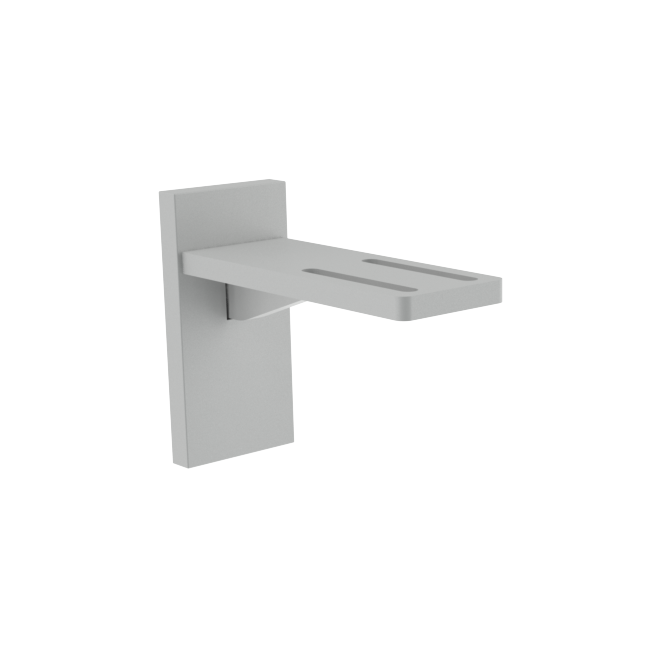

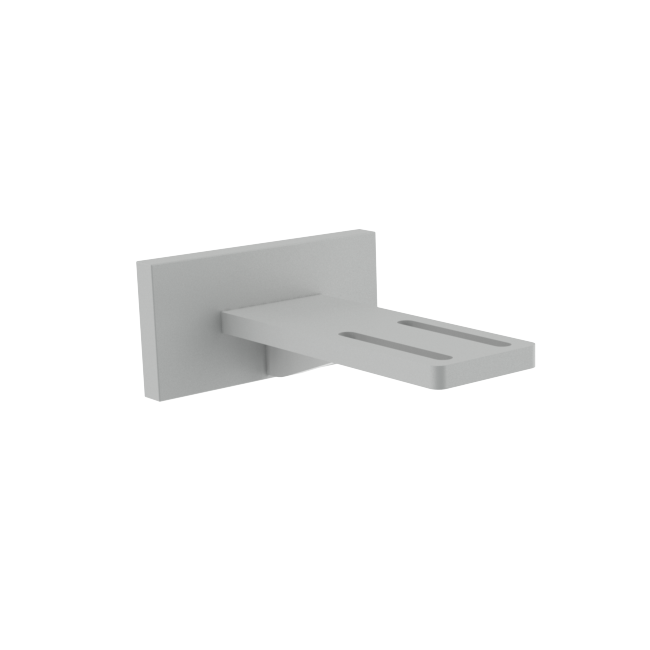

Brackets
Silent Gliss
Somfy
Lutron

A brushed stainless steel base gives an edgy feel, with specially developed tints providing a change of mood to suit the needs of the project.


The beauty of the mild steel base shines through with these special translucent finishes.

Due to unforeseen circumstances, we are no longer in a position to supply product finished in our current brass-toned or matt brass toned variants.

We are working hard to source suitable alternatives, but cannot guarantee they will match existing finish tones, or when the new finishes will be available.


Matte Coats


Satin Coats


Gloss Coats


Architectural Metallics


fluid metal™

Leading edge technology allows authentic metal coats to be applied to any substrate, which can then be worked and aged for a truly luxurious result.

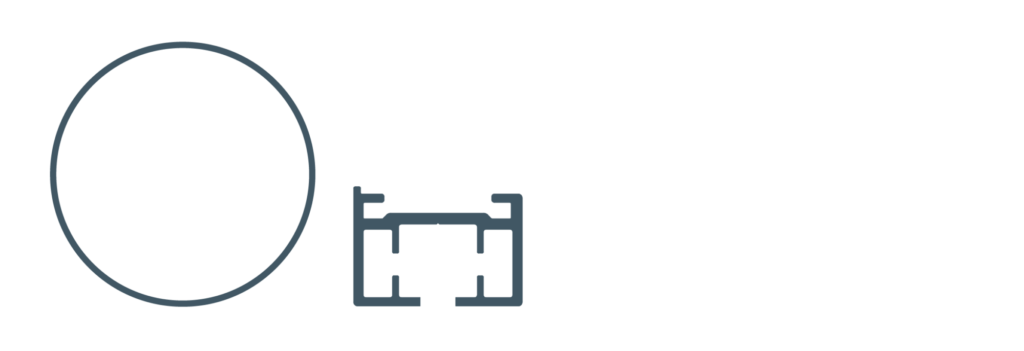

Silent Gliss 5600

Straight poles maximum length 15 Metres (49ft)↔
Bespoke bay service Standard gliders and rollers & Wave® gliders and rollers
DC & AC hidden motor options
Touch and go manual operation
System allows manual operation during power failure
Quiet motors, noise level at 300mm (1’) <36dBA
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 3.0m (118”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joiner will be supplied.


Motor Options


Control Options


gliding Options

Silent Gliss 5600 is available in 4 gliding options: Standard Gliders & Rollers, or Wave® Gliders & Rollers to be used with Wave® header tape.


Somfy® GLYDEA, IRISmo & Movelite

Straight poles maximum length 12 Metres (39ft)↔
Bespoke bay service
Standard roller, Ripple rollers and Ripplefold® rollers
Mains & Battery powered motor options
Touch and go manual operation System allows manual operation during power failure
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Somfy RTS
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


Motor Options


Control Options


Gliding Options

Somfy is available in 3 gliding options: Standard Rollers, Ripple Rollers, to be used with wave-style header tape. Or Ripplefold® Rollers to be used with Graber or Kirsch snap header tape.

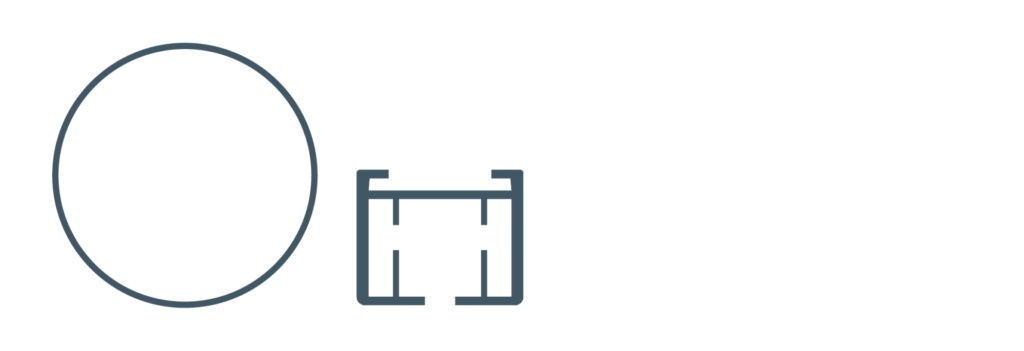

Lutron® Sivoia

Straight poles maximum length 9 Metres (29.5ft)↔
Bespoke bay service
Low voltage concealed motors
Three motor ratings for differing curtain weights
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Lutron® QS Home Automation systems
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


Motor Options


Control Options
