edge

This collection has an architectural purity. Electric track systems are housed within a decorative cover, while Edge brackets act as finials and provide a structured, return to wall detail for drapes. A simple, integrated aesthetic for a sophisticated electric curtain pole.

Leading Motor options

Edge may be specified with your choice from the leading motorised systems. This provides power and control options ranging from standalone battery powered systems to fully integrated home automation solutions.

Minimal Aesthetic

Edge is the epitome of understatement, being sleek, discreet and integrated.

Length

Poles can be supplied to any length↔, subject to maximum weight loadings of the selected motorised system.

Function

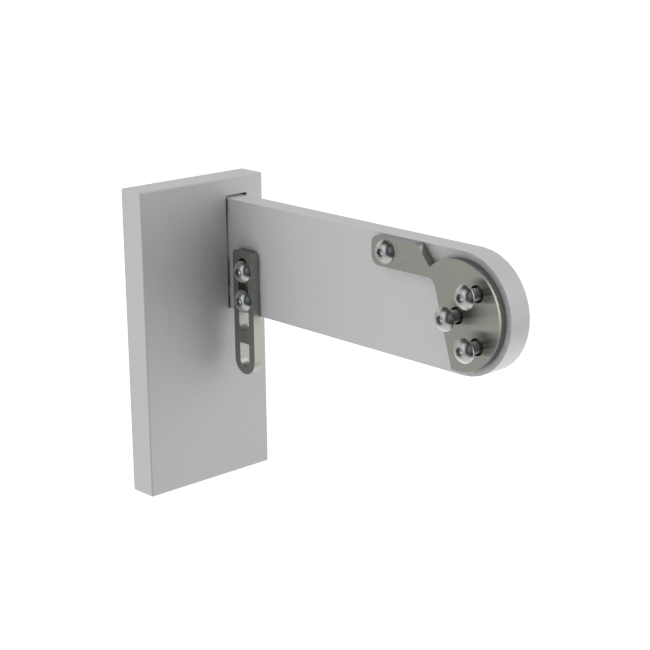

The unique Edge bracket design gives a structured return to the wall for drapes and incorporates an adjustable return-to-wall hook eye.

Detailing

Thoughtful design detailing includes internal track pulley housings painted in a complementary colour.

Modern Headings

The choice of motor systems means that modern headings can be accommodated, with both Wave® and Ripplefold® styles available.

Learn More about

eclipse

options

Finishes
Brackets
Silent Gliss
Somfy
Lutron

A brushed stainless steel base gives an edgy feel, with specially developed tints providing a change of mood to suit the needs of the project.


Due to unforeseen circumstances, we are no longer in a position to supply product finished in our current brass-toned or matt brass toned variants.

We are working hard to source suitable alternatives, but cannot guarantee they will match existing finish tones, or when the new finishes will be available.


Matte Coats


Satin Coats


Gloss Coats


Architectural Metallics


fluid metal™

Leading edge technology allows authentic metal coats to be applied to any substrate, which can then be worked and aged for a truly luxurious result.

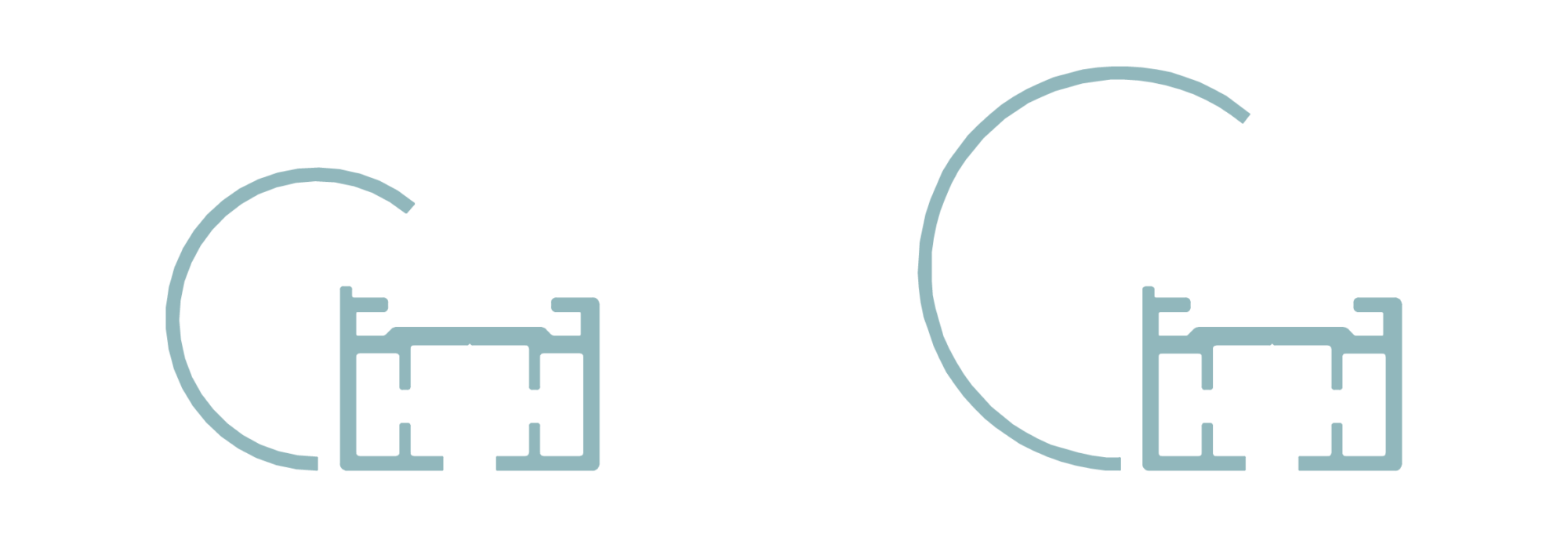

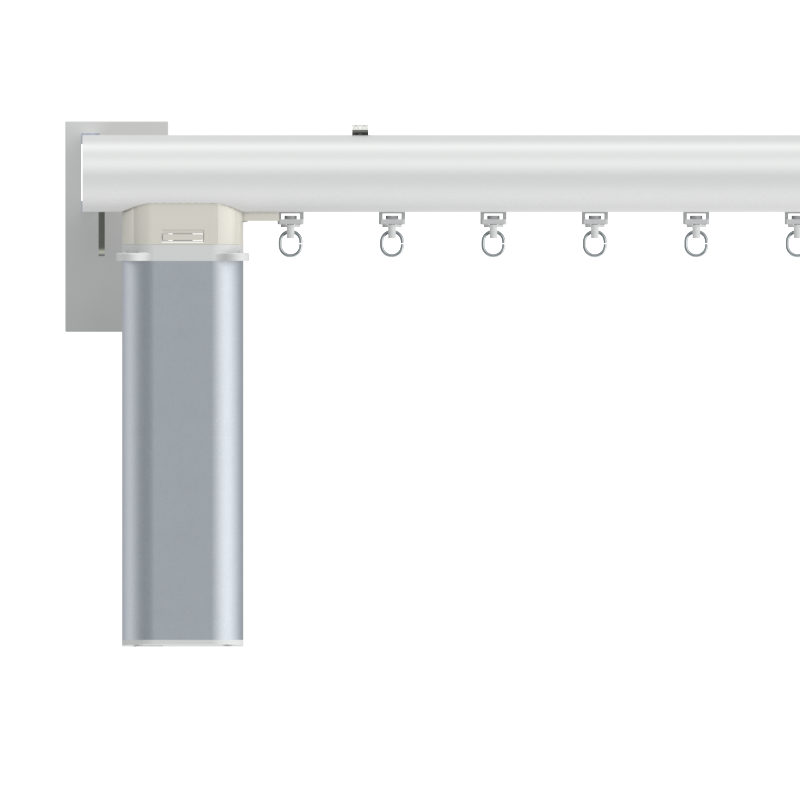

Silent Gliss 5600

Straight poles maximum length 15 Metres (49ft)↔

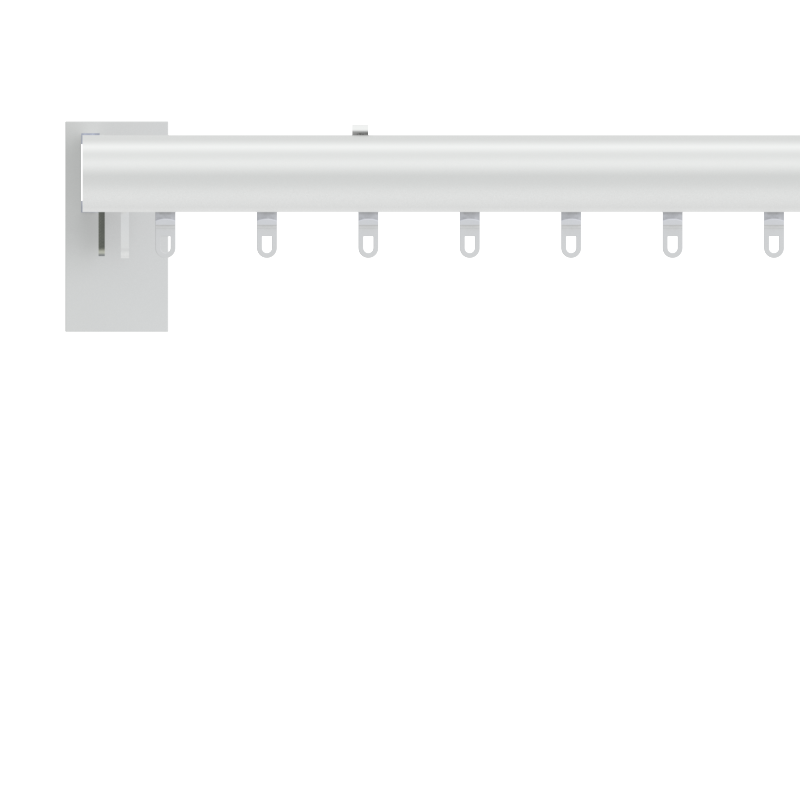

Bespoke bay service Standard gliders and rollers & Wave® gliders and rollers
DC & AC hidden motor options
Touch and go manual operation
System allows manual operation during power failure
Quiet motors, noise level at 300mm (1’) <36dBA
Wireless remote control, app control or home automation integration

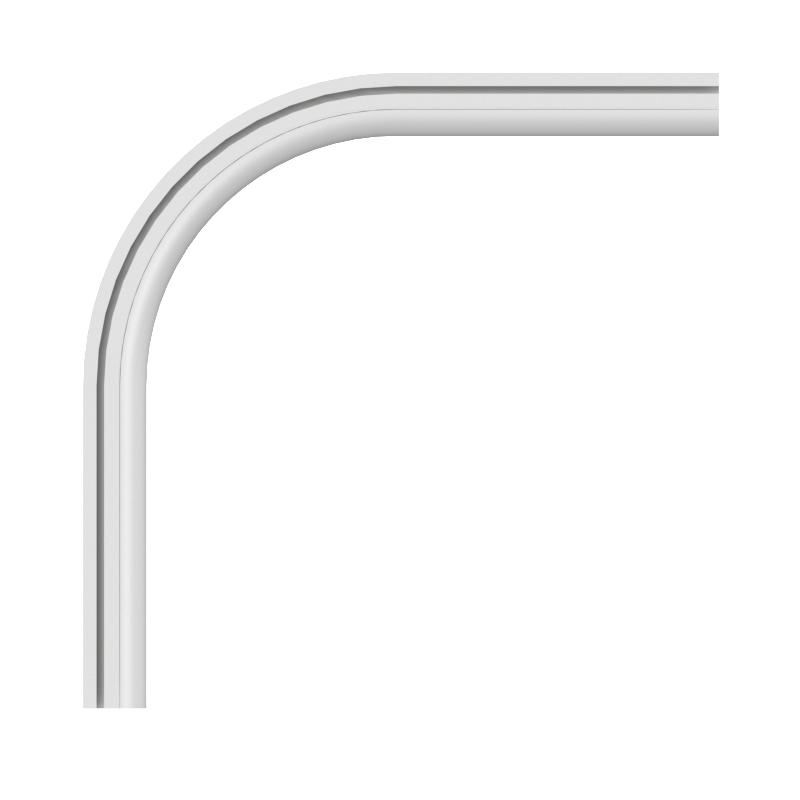

Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.

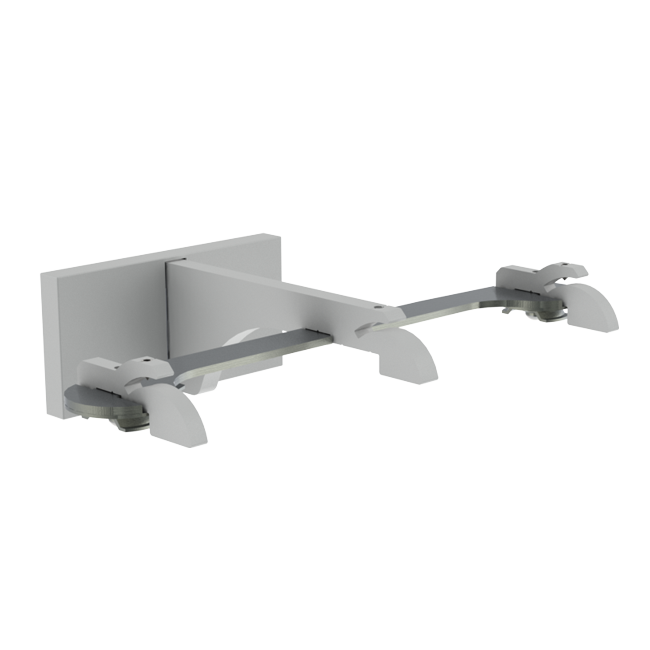

Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


Motor Options


Control Options


gliding Options

Silent Gliss 5600 is available in 4 gliding options: Standard Gliders & Rollers, or Wave® Gliders & Rollers to be used with Wave® header tape.

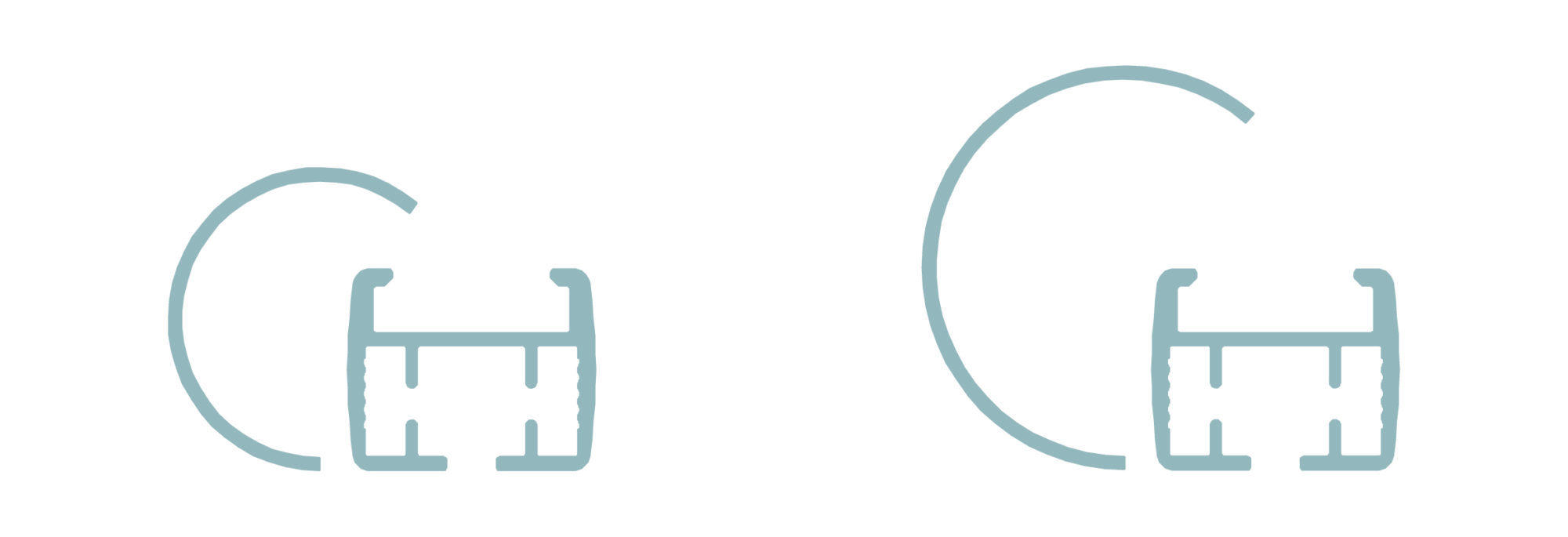

Somfy® GLYDEA, IRISmo & Movelite

Straight poles maximum length 12 Metres (39ft)↔
Bespoke bay service

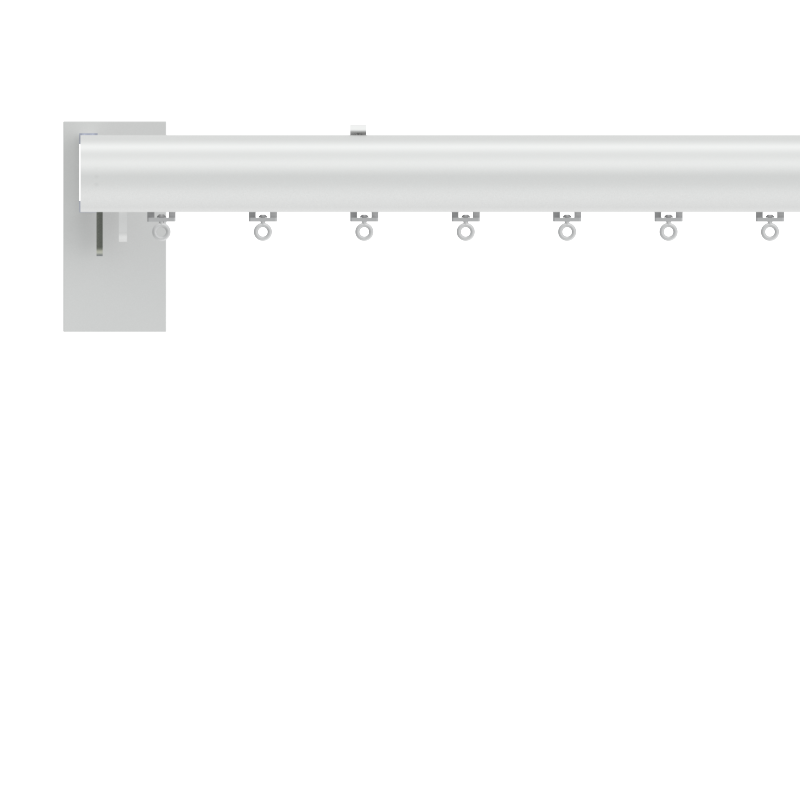

Standard roller, Ripple rollers and Ripplefold® rollers
Mains & Battery powered motor options
Touch and go manual operation System allows manual operation during power failure
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Somfy RTS
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


Motor Options


Control Options


Gliding Options

Somfy is available in 3 gliding options: Standard Rollers, Ripple Rollers, to be used with wave-style header tape. Or Ripplefold® Rollers to be used with Graber or Kirsch snap header tape.

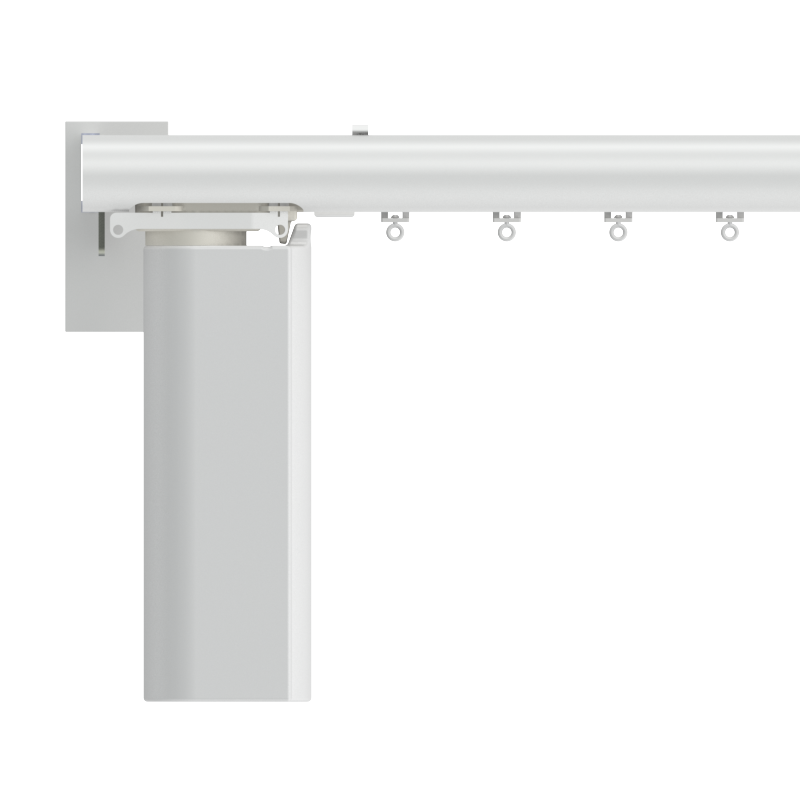

Lutron® Sivoia

Straight poles maximum length 9 Metres (29.5ft)↔
Bespoke bay service
Standard roller and Ripplefold® rollers
Low voltage concealed motors
Three motor ratings for differing curtain weights
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Lutron® QS Home Automation systems
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


motor options


Control Options


Gliding Options

Lutron can be supplied with 2 gliding options: Standard Rollers, or Ripplefold® Rollers to be used with Graber or Kirsch snap header tape.
