eclipse

Peerless and opulent, this collection truly has no rival.

A rare, luxurious aesthetic and freedom of expression in design are balanced with the final word in functionality and control.

The world’s finest.

Leading motor options

Eclipse may be specified with your choice from the leading motorised systems. This provides power and control options ranging from standalone battery powered systems to fully integrated home automation solutions. For Double pole systems, a hand drawn rear pole may be specified if preferred.

Scale

Eclipse poles are available in two pole diameters, Ø38mm (1 1/2”) • 50mm (2”). Finial designs are carefully scaled to maintain the system aesthetic.

detailing

The secret of any design is in the detail. Eclipse now includes a complementary finish to nylon end housings, for a harmonious tonal effect.

Length

Poles can be supplied to any length↔, subject to maximum weight loadings of the selected motorised system.

function

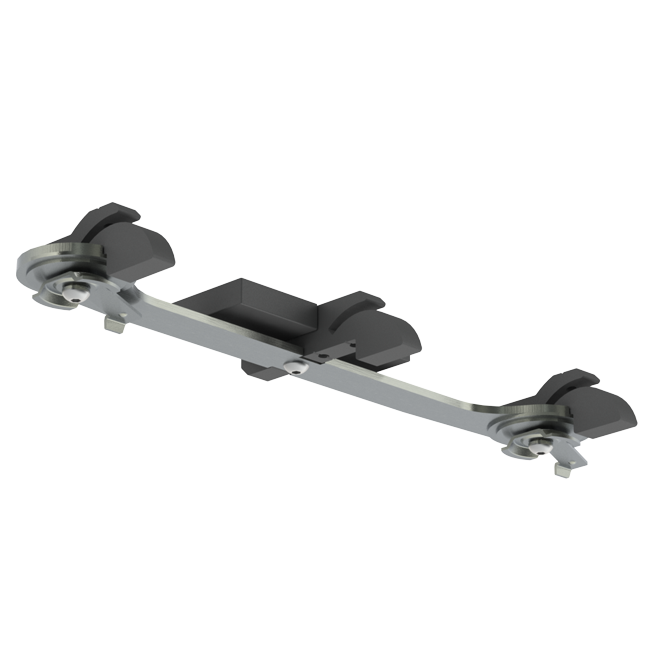

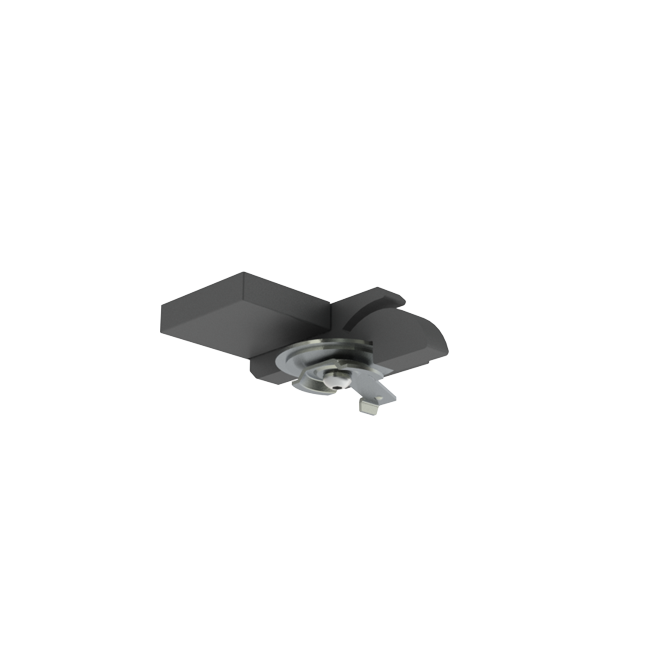

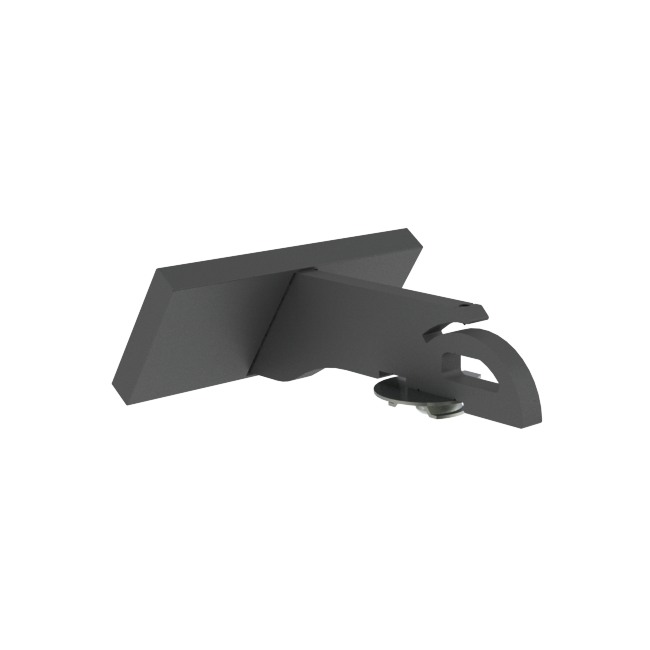

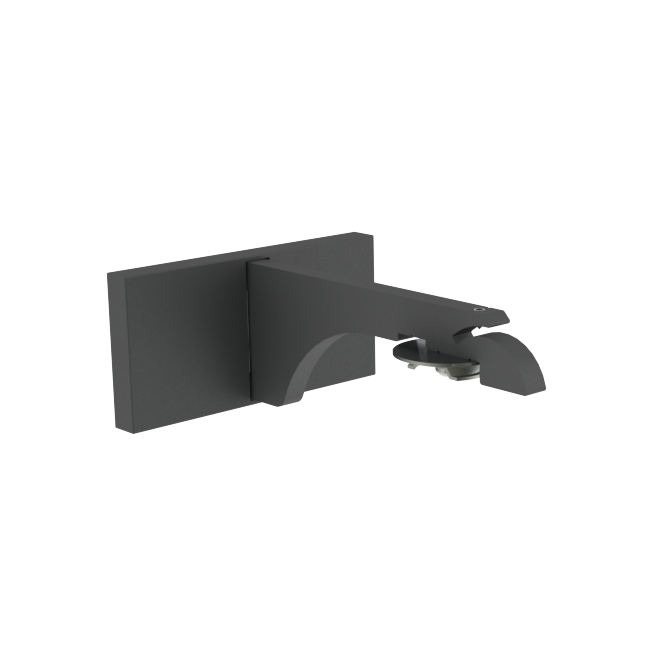

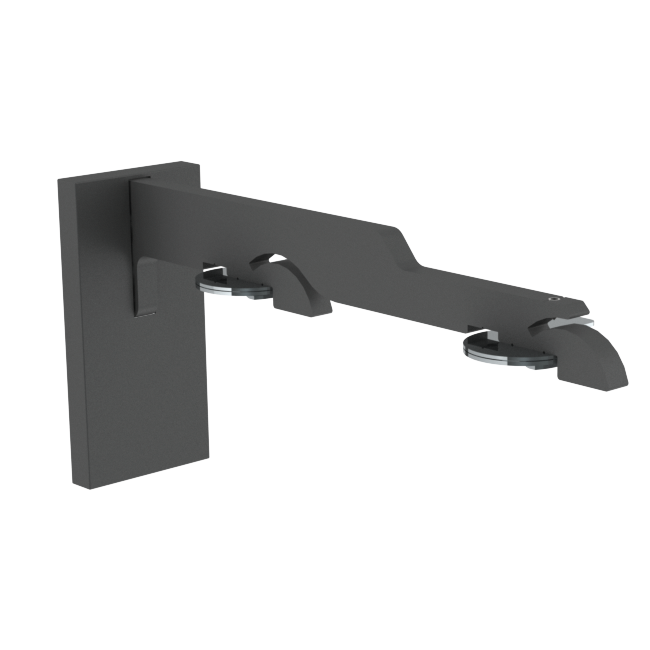

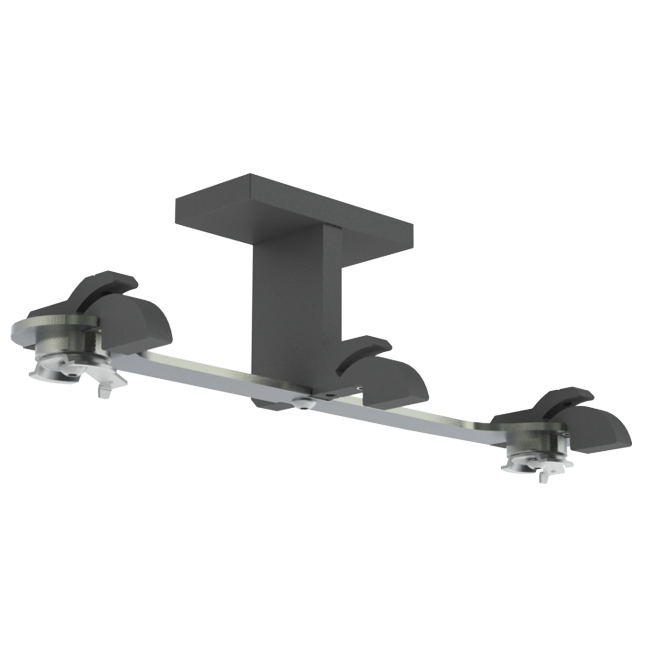

A range of bracket options have been designed to ensure simple installation, including flush fit ceiling brackets.

Bent to shape

A bespoke bay bending and curving service is available on all diameters to allow the perfect shaped pole to fit any bay window.

modern headings

The choice of motor systems means that modern headings can be accommodated, with both Wave® and Ripplefold® styles available.

options

Finishes
Finials

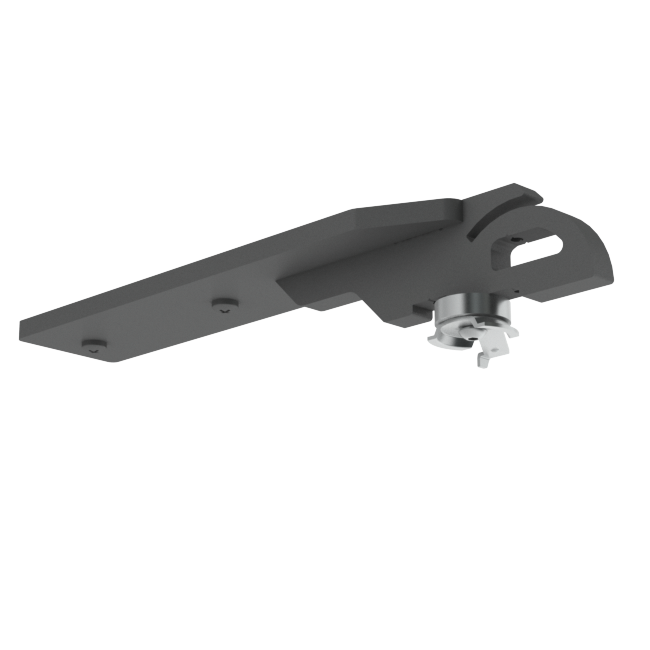

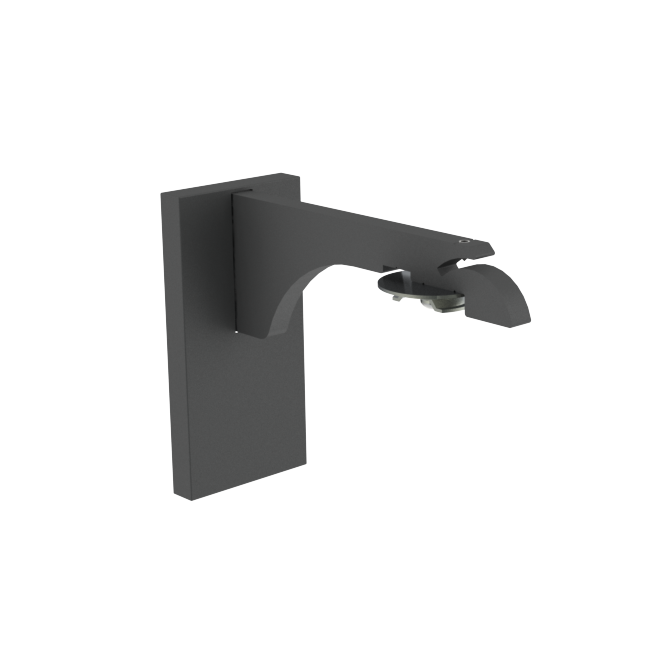

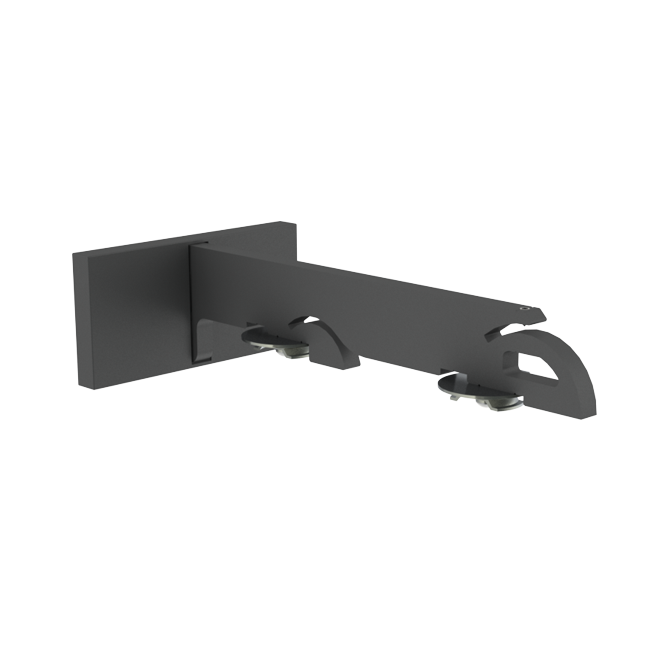

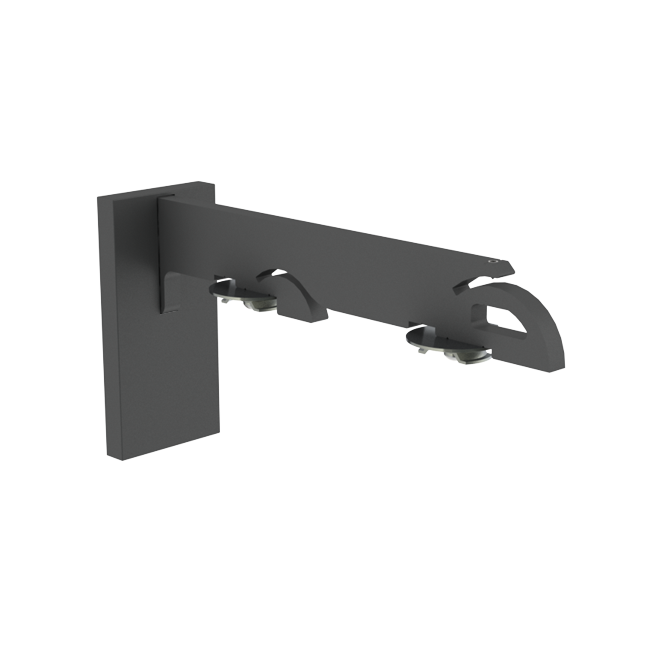

Brackets
Silent Gliss
Somfy
Lutron

A brushed stainless steel base gives an edgy feel, with specially developed tints providing a change of mood to suit the needs of the project.


The beauty of the mild steel base shines through with these special translucent finishes.


Matte Coat


satin coat


Gloss Coat


fluid metal™

Leading edge technology allows authentic metal coats to be applied to any substrate, which can then be worked and aged for a truly luxurious result.


Silent Gliss 5600

Straight poles maximum length 15 Metres (49ft)↔
Bespoke bay service Standard gliders and rollers & Wave® gliders and rollers
DC & AC hidden motor options
Touch and go manual operation
System allows manual operation during power failure
Quiet motors, noise level at 300mm (1’) <36dBA
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.

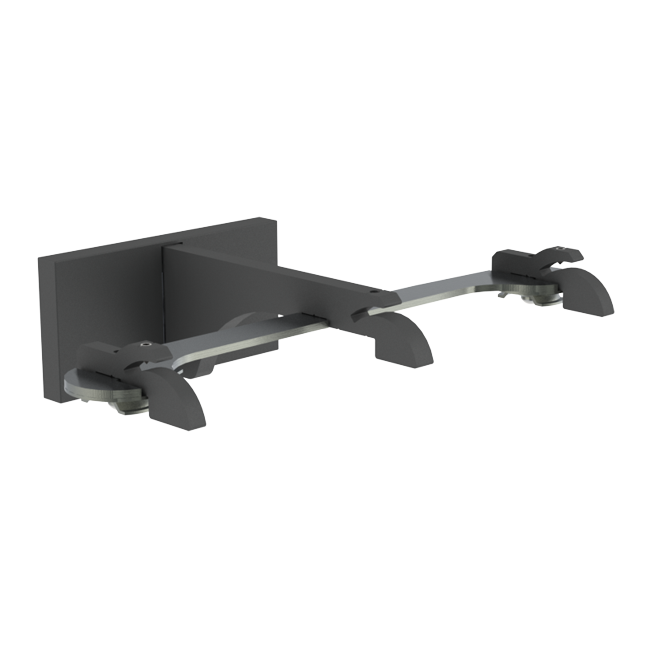

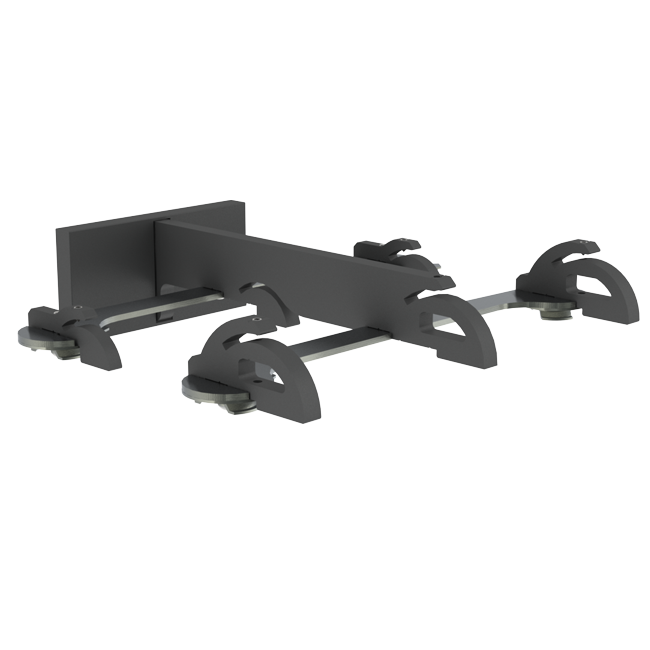

Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


Motor Options


Control Options


gliding Options

Silent Gliss 5600 is available in 4 gliding options: Standard Gliders & Rollers, or Wave® Gliders & Rollers to be used with Wave® header tape.


Somfy® GLYDEA, IRISmo & Movelite

Straight poles maximum length 12 Metres (39ft)↔
Bespoke bay service
Standard roller, Ripple rollers and Ripplefold® rollers
Mains & Battery powered motor options
Touch and go manual operation System allows manual operation during power failure
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Somfy RTS
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


Motor Options


Control Options


Gliding Options

Somfy is available in 3 gliding options: Standard Rollers, Ripple Rollers, to be used with wave-style header tape. Or Ripplefold® Rollers to be used with Graber or Kirsch snap header tape.


Lutron® Sivoia

Straight poles maximum length 9 Metres (29.5ft)↔
Bespoke bay service
Standard roller and Ripplefold® rollers
Low voltage concealed motors
Three motor ratings for differing curtain weights
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Lutron® QS Home Automation systems
Wireless remote control, app control or home automation integration





Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.


motor options


Control Options


Gliding Options

Lutron can be supplied with 2 gliding options: Standard Rollers, or Ripplefold® Rollers to be used with Graber or Kirsch snap header tape.
